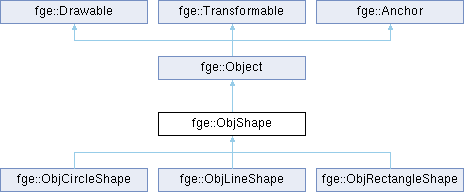

Inheritance diagram for fge::ObjShape:

Classes
struct	InstanceData

Public Types
enum class	DrawModes : uint8_t { DRAW_IF_ON_TARGET , DRAW_ALWAYS_HIDDEN , DRAW_ALWAYS_DRAWN , DRAW_DEFAULT = DRAW_IF_ON_TARGET }
enum class	CallbackContextModes : uint8_t { CONTEXT_MANUAL , CONTEXT_AUTO , CONTEXT_DEFAULT = CONTEXT_AUTO }
enum class	NetSyncModes : uint8_t { NO_SYNC , FULL_SYNC , DELTA_SYNC , NETSYNC_DEFAULT = NO_SYNC }
enum	ChildrenControlFlags : uint8_t { CHILDREN_AUTO_CLEAR_ON_REMOVE = 1 << 0 , CHILDREN_AUTO_UPDATE = 1 << 1 , CHILDREN_AUTO_DRAW = 1 << 2 , CHILDREN_DEFAULT = CHILDREN_AUTO_CLEAR_ON_REMOVE }
using	ChildrenControlFlags_t = std::underlying_type_t<ChildrenControlFlags>
enum class	Types : uint8_t { ANCHOR_NONE , ANCHOR_UPLEFT_CORNER , ANCHOR_UPRIGHT_CORNER , ANCHOR_DOWNLEFT_CORNER , ANCHOR_DOWNRIGHT_CORNER }
enum class	Shifts : uint8_t { SHIFT_NONE , SHIFT_POSITIVE_BOUNDS , SHIFT_NEGATIVE_BOUNDS }

Public Member Functions
void	setTexture (Texture const &texture, bool resetRect=false)
void	setTextureRect (fge::RectInt const &rect)
void	setFillColor (Color color, std::size_t instance=0)
void	setOutlineColor (Color color, std::size_t instance=0)
void	setOffset (fge::Vector2f const &offset, std::size_t instance=0)
void	setInstancesCount (std::size_t count)
void	addInstance (Color fillColor, Color outlineColor, fge::Vector2f const &offset)
std::size_t	getInstancesCount () const
void	clearInstances ()
void	setOutlineThickness (float thickness)
Texture const &	getTexture () const
RectInt const &	getTextureRect () const
Color	getFillColor (std::size_t instance=0) const
Color	getOutlineColor (std::size_t instance=0) const
fge::Vector2f const &	getOffset (std::size_t instance=0) const
float	getOutlineThickness () const
virtual std::size_t	getPointCount () const =0
virtual Vector2f	getPoint (std::size_t index) const =0
void	first (fge::Scene &scene) override
	Method called when the object is added to a scene for initialization purposes.
void	draw (fge::RenderTarget &target, const fge::RenderStates &states) const override
	Method called every frame to draw the object.
fge::RectFloat	getLocalBounds () const override
	Get the local bounds of the object (without any transformations)
fge::RectFloat	getGlobalBounds () const override
	Get the global bounds of the object.
virtual fge::Object *	copy ()
	Duplicate the object.
virtual void	transfered (fge::Scene &oldScene, fge::Scene &newScene)
	Method called when the object is transferred from a scene to another.
virtual void	callbackRegister (fge::Event &event, fge::GuiElementHandler *guiElementHandlerPtr)
	Ask the object to register all callbacks it needs to receive events.
virtual void	update (fge::RenderTarget &target, fge::Event &event, fge::DeltaTime const &deltaTime, fge::Scene &scene)
	Main method called every frame.
void	update (fge::RenderTarget &target, fge::Event &event, fge::DeltaTime const &deltaTime)
virtual void	networkRegister ()
	Register all network types needed by the object.
virtual void	netSignaled (int8_t signal)
	Method called when the object is signaled by the network.
virtual void	removed (fge::Scene &scene)
	Method called when the object is removed from a scene.
virtual void	save (nlohmann::json &jsonObject)
	Save the object to a json object.
virtual void	load (nlohmann::json &jsonObject, std::filesystem::path const &filePath)
	Load the object from a json object.
virtual void	pack (fge::net::Packet &pck)
	Pack the object into a packet.
virtual void	unpack (fge::net::Packet const &pck)
	Unpack the object from a packet.
virtual char const *	getClassName () const
	Get the unique class name of the object.
virtual char const *	getReadableClassName () const
	Get a readable version of the class name.
virtual fge::Quad	getGlobalQuad () const
virtual fge::Quad	getLocalQuad () const
bool	saveInFile (std::filesystem::path const &path, int fieldWidth=2, bool saveClassName=true)
	Save the object in a file.
bool	loadFromFile (std::filesystem::path const &path, bool loadClassName=true)
	Load the object from a file.
virtual fge::GuiElement *	getGuiElement ()
	Get the GuiElement attached to this object if there is one.
glm::mat4	getParentsTransform () const
	Retrieve recursively all parents transform by combining them.
fge::Vector2f	getParentsScale () const
	Retrieve recursively all parents scale by combining them.
void	centerOriginFromLocalBounds ()
	Center the origin of the object from its local bounds.
void	setPosition (Vector2f const &position)
Vector2f const &	getPosition () const
void	move (Vector2f const &offset)
void	setRotation (float angle)
float	getRotation () const
void	rotate (float angle)
void	setScale (Vector2f const &factors)
void	setScale (float factor)
Vector2f const &	getScale () const
void	scale (Vector2f const &factor)
void	scale (float factor)
void	setOrigin (Vector2f const &origin)
Vector2f const &	getOrigin () const
glm::mat4 const &	getTransform () const
glm::mat4 const &	getInverseTransform () const
void	updateAnchor (fge::Vector2f const &customTargetSize={0.0f, 0.0f})
void	setAnchor (Types type, fge::Vector2< Shifts > const &shift, fge::ObjectSid target=std::numeric_limits< fge::ObjectSid >::max())
void	setAnchorType (Types type)
void	setAnchorShift (fge::Vector2< Shifts > const &shift)
void	setAnchorTarget (fge::ObjectSid target)
Types	getAnchorType () const
fge::Vector2< Shifts > const &	getAnchorShift () const
fge::ObjectSid	getAnchorTarget () const
fge::Object *	getAnchorOwner () const
void	setAnchorSuccessor (fge::ObjectDataWeak successor)
fge::ObjectDataWeak	getAnchorSuccessor () const
void	needAnchorUpdate (bool flag)
bool	isNeedingAnchorUpdate () const
View &	createOwnView ()
void	removeOwnView ()
bool	hasOwnView () const
std::shared_ptr< View > const &	getOwnView () const
void	setOwnView (std::shared_ptr< View > view)
void	ownViewOverrideParent (bool enable)
bool	isOwnViewOverridingParent () const
void	ownViewExplicitlySetDefaultView (bool enable)
bool	isOwnViewUsingExplicitDefaultView () const
View const &	requestView (View const &source, fge::ObjectDataWeak object) const
View const &	requestView (View const &source, OwnView const &parent) const
View const &	requestView (View const &source) const
View const &	requestView (fge::RenderTarget const &source, fge::ObjectDataWeak object) const
View const &	requestView (fge::RenderTarget const &source, OwnView const &parent) const
View const &	requestView (fge::RenderTarget const &source) const

Static Public Member Functions
static std::unique_ptr< fge::Object >	LoadFromFile (std::filesystem::path const &path)
	Static form of the loadFromFile method.

Public Attributes
fge::TagList	_tags
	The tags of the object.
fge::PropertyList	_properties
	The properties of the object.
fge::net::NetworkTypeHandler	_netList
	The network types container of the object.
fge::ObjectDataWeak	_myObjectData
	The object data of the object (valid only if the object is in a scene)
DrawModes	_drawMode {DrawModes::DRAW_DEFAULT}
	Tell a scene when this object should be drawn.
CallbackContextModes	_callbackContextMode
	Tell a scene how the callbackRegister must be called.
NetSyncModes	_netSyncMode {NetSyncModes::NETSYNC_DEFAULT}
	Tell a scene how the object must be synchronised.
net::Identity	_netOwner {}
	The owner of the object.
ChildrenControlFlags_t	_childrenControlFlags {CHILDREN_DEFAULT}
	The control flags of the child objects.
fge::ChildObjectsAccessor	_children
	An access to child objects of this object.

Protected Member Functions
	ObjShape (ObjShape const &r)
void	updateShape ()

Member Function Documentation

◆ callbackRegister()

virtual void fge::Object::callbackRegister	(	fge::Event &	event,
		fge::GuiElementHandler *	guiElementHandlerPtr )

virtualinherited

Ask the object to register all callbacks it needs to receive events.

Parameters

event	The event system
guiElementHandlerPtr	The GUI element handler

Reimplemented in fge::ObjButton, fge::ObjSelectBox, fge::ObjSlider, fge::ObjTextInputBox, fge::ObjTextList, and fge::ObjWindow.

◆ centerOriginFromLocalBounds()

void fge::Object::centerOriginFromLocalBounds ( )

inherited

Center the origin of the object from its local bounds.

◆ copy()

virtual fge::Object * fge::Object::copy ( )

virtualinherited

Duplicate the object.

By default, if the copy method is not overridden, the object is duplicated with the help of the register manager (and the object class have to be registered).

Returns: An allocated pointer to the duplicated object

Reimplemented in fge::ObjAnimation, fge::ObjButton, fge::ObjLight, fge::ObjRenderMap, fge::ObjShaderChain, fge::ObjSprite, fge::ObjSpriteBatches, fge::ObjSpriteCluster, fge::ObjSwitch, fge::ObjText, fge::ObjTileLayer, and fge::ObjWindow.

◆ draw()

void fge::ObjShape::draw	(	fge::RenderTarget &	target,
		const fge::RenderStates &	states ) const

overridevirtual

Method called every frame to draw the object.

Parameters

target	The target where the object is drawn
states	The render states

Reimplemented from fge::Object.

◆ first()

void fge::ObjShape::first ( fge::Scene & scene )

overridevirtual

Method called when the object is added to a scene for initialization purposes.

Parameters

scene The scene where the object is added

Reimplemented from fge::Object.

◆ getClassName()

virtual char const * fge::Object::getClassName ( ) const

virtualinherited

Get the unique class name of the object.

Returns: The unique class name of the object

Reimplemented in fge::ObjAnimation, fge::ObjButton, fge::ObjCircleShape, fge::ObjLight, fge::ObjLineShape, fge::ObjRectangleShape, fge::ObjRenderMap, fge::ObjSelectBox, fge::ObjShaderChain, fge::ObjSlider, fge::ObjSprite, fge::ObjSpriteBatches, fge::ObjSpriteCluster, fge::ObjSwitch, fge::ObjText, fge::ObjTextInputBox, fge::ObjTextList, fge::ObjTileLayer, and fge::ObjWindow.

◆ getGlobalBounds()

fge::RectFloat fge::ObjShape::getGlobalBounds ( ) const

nodiscardoverridevirtual

Get the global bounds of the object.

Returns: The global bounds of the object

Reimplemented from fge::Object.

◆ getGuiElement()

virtual fge::GuiElement * fge::Object::getGuiElement ( )

virtualinherited

Get the GuiElement attached to this object if there is one.

Returns: The GuiElement pointer or nullptr

Reimplemented in fge::ObjButton, fge::ObjSelectBox, fge::ObjSlider, fge::ObjTextInputBox, and fge::ObjWindow.

◆ getLocalBounds()

fge::RectFloat fge::ObjShape::getLocalBounds ( ) const

nodiscardoverridevirtual

Get the local bounds of the object (without any transformations)

Returns: The local bounds of the object

Reimplemented from fge::Object.

◆ getParentsScale()

fge::Vector2f fge::Object::getParentsScale ( ) const

inherited

Retrieve recursively all parents scale by combining them.

Returns: Parents scale

◆ getParentsTransform()

glm::mat4 fge::Object::getParentsTransform ( ) const

inherited

Retrieve recursively all parents transform by combining them.

Returns: Parents transform

◆ getReadableClassName()

virtual char const * fge::Object::getReadableClassName ( ) const

virtualinherited

Get a readable version of the class name.

Returns: A readable version of the class name

Reimplemented in fge::ObjAnimation, fge::ObjButton, fge::ObjCircleShape, fge::ObjLight, fge::ObjLineShape, fge::ObjRectangleShape, fge::ObjRenderMap, fge::ObjSelectBox, fge::ObjShaderChain, fge::ObjSlider, fge::ObjSprite, fge::ObjSpriteBatches, fge::ObjSpriteCluster, fge::ObjSwitch, fge::ObjText, fge::ObjTextInputBox, fge::ObjTextList, fge::ObjTileLayer, and fge::ObjWindow.

◆ load()

virtual void fge::Object::load	(	nlohmann::json &	jsonObject,
		std::filesystem::path const &	filePath )

virtualinherited

Load the object from a json object.

Parameters

jsonObject	The json object where the object is loaded
filePath	The path of the main file where the object is loaded from

Reimplemented in fge::ObjAnimation, fge::ObjButton, fge::ObjLight, fge::ObjRenderMap, fge::ObjSelectBox, fge::ObjSprite, fge::ObjSpriteBatches, fge::ObjSpriteCluster, fge::ObjSwitch, fge::ObjText, and fge::ObjTextInputBox.

◆ LoadFromFile()

std::unique_ptr< fge::Object > fge::Object::LoadFromFile ( std::filesystem::path const & path )

staticnodiscardinherited

Static form of the loadFromFile method.

Parameters

path	The path of the file

Returns: The allocated pointer of the loaded object or nullptr if the object was not loaded

◆ loadFromFile()

bool fge::Object::loadFromFile	(	std::filesystem::path const &	path,
		bool	loadClassName = true )

inherited

Load the object from a file.

Parameters

path	The path of the file
loadClassName	Load and verify the class name

Returns: true if the object was loaded, false otherwise

◆ netSignaled()

virtual void fge::Object::netSignaled ( int8_t signal )

virtualinherited

Method called when the object is signaled by the network.

Parameters

signal The signal received

◆ networkRegister()

virtual void fge::Object::networkRegister ( )

virtualinherited

Register all network types needed by the object.

◆ pack()

virtual void fge::Object::pack ( fge::net::Packet & pck )

virtualinherited

Pack the object into a packet.

Parameters

pck	The packet where the object is packed

Reimplemented in fge::ObjAnimation, fge::ObjButton, fge::ObjLight, fge::ObjRenderMap, fge::ObjSelectBox, fge::ObjSprite, fge::ObjSpriteBatches, fge::ObjSpriteCluster, fge::ObjSwitch, fge::ObjText, and fge::ObjTextInputBox.

◆ removed()

virtual void fge::Object::removed ( fge::Scene & scene )

virtualinherited

Method called when the object is removed from a scene.

Parameters

scene The scene where the object is removed

Reimplemented in fge::ObjRenderMap, and fge::ObjWindow.

◆ save()

virtual void fge::Object::save ( nlohmann::json & jsonObject )

virtualinherited

Save the object to a json object.

Parameters

jsonObject The json object where the object is saved

Reimplemented in fge::ObjAnimation, fge::ObjButton, fge::ObjLight, fge::ObjRenderMap, fge::ObjSelectBox, fge::ObjSprite, fge::ObjSpriteBatches, fge::ObjSpriteCluster, fge::ObjSwitch, fge::ObjText, and fge::ObjTextInputBox.

◆ saveInFile()

bool fge::Object::saveInFile	(	std::filesystem::path const &	path,
		int	fieldWidth = 2,
		bool	saveClassName = true )

inherited

Save the object in a file.

Parameters

path	The path of the file
fieldWidth	The width of the fields in the file
saveClassName	If the class name must be saved

Returns: true if the object was saved, false otherwise

◆ transfered()

virtual void fge::Object::transfered	(	fge::Scene &	oldScene,
		fge::Scene &	newScene )

virtualinherited

Method called when the object is transferred from a scene to another.

This method is called after the object is removed from the old scene and added to the new scene. The _myObjectData is updated to the new scene when this method is called.

Parameters

oldScene	The old scene where the object was
newScene	The new scene where the object is

◆ unpack()

virtual void fge::Object::unpack ( fge::net::Packet const & pck )

virtualinherited

Unpack the object from a packet.

Parameters

pck	The packet where the object is unpacked

Reimplemented in fge::ObjAnimation, fge::ObjButton, fge::ObjLight, fge::ObjRenderMap, fge::ObjSelectBox, fge::ObjSprite, fge::ObjSpriteBatches, fge::ObjSpriteCluster, fge::ObjSwitch, fge::ObjText, and fge::ObjTextInputBox.

◆ update()

virtual void fge::Object::update	(	fge::RenderTarget &	target,
		fge::Event &	event,
		fge::DeltaTime const &	deltaTime,
		fge::Scene &	scene )

virtualinherited

Main method called every frame.

Parameters

target	The target where the object is drawn
event	The event system
deltaTime	The time since the last frame
scene	The scene where the object is updated

Reimplemented in fge::ObjAnimation, fge::ObjLight, fge::ObjRenderMap, fge::ObjSwitch, and fge::ObjWindow.

Member Data Documentation

◆ _callbackContextMode

CallbackContextModes fge::Object::_callbackContextMode

inherited

Initial value:

{

CallbackContextModes::CONTEXT_DEFAULT}

Tell a scene how the callbackRegister must be called.

◆ _children

fge::ChildObjectsAccessor fge::Object::_children

inherited

An access to child objects of this object.

◆ _childrenControlFlags

ChildrenControlFlags_t fge::Object::_childrenControlFlags {CHILDREN_DEFAULT}

inherited

The control flags of the child objects.

◆ _drawMode

DrawModes fge::Object::_drawMode {DrawModes::DRAW_DEFAULT}

inherited

Tell a scene when this object should be drawn.

◆ _myObjectData

fge::ObjectDataWeak fge::Object::_myObjectData

inherited

The object data of the object (valid only if the object is in a scene)

◆ _netList

fge::net::NetworkTypeHandler fge::Object::_netList

inherited

The network types container of the object.

◆ _netOwner

net::Identity fge::Object::_netOwner {}

inherited

The owner of the object.

◆ _netSyncMode

NetSyncModes fge::Object::_netSyncMode {NetSyncModes::NETSYNC_DEFAULT}

inherited

Tell a scene how the object must be synchronised.

◆ _properties

fge::PropertyList fge::Object::_properties

inherited

The properties of the object.

◆ _tags

fge::TagList fge::Object::_tags

inherited

The tags of the object.

The documentation for this class was generated from the following file:

C_objShape.hpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Member Function Documentation

◆ callbackRegister()

◆ centerOriginFromLocalBounds()

◆ copy()

◆ draw()

◆ first()

◆ getClassName()

◆ getGlobalBounds()

◆ getGuiElement()

◆ getLocalBounds()

◆ getParentsScale()

◆ getParentsTransform()

◆ getReadableClassName()

◆ load()

◆ LoadFromFile()

◆ loadFromFile()

◆ netSignaled()

◆ networkRegister()

◆ pack()

◆ removed()

◆ save()

◆ saveInFile()

◆ transfered()

◆ unpack()

◆ update()

Member Data Documentation

◆ _callbackContextMode

◆ _children

◆ _childrenControlFlags

◆ _drawMode

◆ _myObjectData

◆ _netList

◆ _netOwner

◆ _netSyncMode

◆ _properties

◆ _tags
