fge::GuiElementRecursive Class Reference

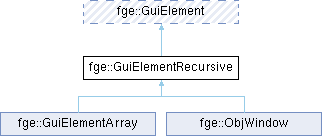

Inheritance diagram for fge::GuiElementRecursive:

Public Types
using	Priority = uint8_t

Public Member Functions
bool	isRecursive () const final
	Check if this GuiElement is recursive.
void	setGuiScale (fge::Vector2f const &scale)
	Set the scale of the element.
fge::Vector2f const &	getGuiScale () const
	Get the scale of the element.
void	setPriority (fge::GuiElement::Priority priority) const
	Set the priority of the element.
fge::GuiElement::Priority	getPriority () const
	Get the priority of the element.
bool	verifyPriority (fge::GuiElement *element) const
	Verify if the priority of the element is higher than the given element.
virtual void	onGuiVerify (fge::Event const &evt, SDL_EventType evtType, fge::GuiElementContext &context)=0
	Function called to verify if the element is hovered by the mouse.

Static Public Member Functions
static void	setGlobalGuiScale (fge::Vector2f const &scale)
static fge::Vector2f const &	getGlobalGuiScale ()

Public Attributes
fge::CallbackHandler< fge::Event const &, SDL_MouseWheelEvent const &, fge::GuiElementContext & >	_onGuiMouseWheelScrolled
	Callback called when the element is verified and the mouse wheel is scrolled.
fge::CallbackHandler< fge::Event const &, SDL_MouseButtonEvent const &, fge::GuiElementContext & >	_onGuiMouseButtonPressed
	Callback called when the element is verified and the mouse is pressed.
fge::CallbackHandler< fge::Event const &, SDL_MouseButtonEvent const &, fge::GuiElementContext & >	_onGuiMouseButtonReleased
	Callback called when the element is verified and a mouse button is released.
fge::CallbackHandler< fge::Event const &, SDL_MouseMotionEvent const &, fge::GuiElementContext & >	_onGuiMouseMoved
	Callback called when the element is verified and the mouse is moved.

Static Public Attributes
static fge::CallbackHandler< fge::Vector2f const & >	_onGlobalGuiScaleChange

Protected Attributes
fge::GuiElement::Priority	_g_priority { 50 }
fge::Vector2f	_g_scale {1.0f, 1.0f}

Member Function Documentation

getGuiScale()

fge::Vector2f const & fge::GuiElement::getGuiScale ( ) const

inlinenodiscardinherited

Get the scale of the element.

Returns

The scale of the element

getPriority()

fge::GuiElement::Priority fge::GuiElement::getPriority ( ) const

inlinenodiscardinherited

Get the priority of the element.

Returns

The priority of the element

isRecursive()

bool fge::GuiElementRecursive::isRecursive ( ) const

inlinefinalvirtual

Check if this GuiElement is recursive.

A gui element is recursive if it handle others GuiElements.

Returns

true if it is recursive, false otherwise

Reimplemented from fge::GuiElement.

onGuiVerify()

virtual void fge::GuiElement::onGuiVerify ( fge::Event const & evt, SDL_EventType evtType, fge::GuiElementContext & context )

pure virtualinherited

Function called to verify if the element is hovered by the mouse.

This function should call verifyPriority to verify the priority of the element. If the priority is higher than the given element, the function should replace the provided pointer reference element with the element itself.

Parameters

evt	An fge::Event
evtType	The type of the SDL event called
context	The GuiElement context

Implemented in fge::GuiElementArray, fge::GuiElementDefault, and fge::GuiElementRectangle.

setGuiScale()

void fge::GuiElement::setGuiScale ( fge::Vector2f const & scale )

inlineinherited

Set the scale of the element.

Parameters

scale

The scale of the element

setPriority()

void fge::GuiElement::setPriority ( fge::GuiElement::Priority priority ) const

inlineinherited

Set the priority of the element.

The priority value can be used with the scene DepthPlan.

Parameters

priority

The priority of the element

verifyPriority()

bool fge::GuiElement::verifyPriority ( fge::GuiElement * element ) const

inlinenodiscardinherited

Verify if the priority of the element is higher than the given element.

If the provided element is null, the function will assume that the element is the highest priority.

Parameters

element

The element to compare with

Returns

true if the priority of the element is higher than the given element, false otherwise

Member Data Documentation

_onGuiMouseButtonPressed

fge::CallbackHandler<fge::Event const&, SDL_MouseButtonEvent const&, fge::GuiElementContext&> fge::GuiElement::_onGuiMouseButtonPressed

inherited

Callback called when the element is verified and the mouse is pressed.

_onGuiMouseButtonReleased

fge::CallbackHandler<fge::Event const&, SDL_MouseButtonEvent const&, fge::GuiElementContext&> fge::GuiElement::_onGuiMouseButtonReleased

inherited

Callback called when the element is verified and a mouse button is released.

_onGuiMouseMoved

fge::CallbackHandler<fge::Event const&, SDL_MouseMotionEvent const&, fge::GuiElementContext&> fge::GuiElement::_onGuiMouseMoved

inherited

Callback called when the element is verified and the mouse is moved.

_onGuiMouseWheelScrolled

fge::CallbackHandler<fge::Event const&, SDL_MouseWheelEvent const&, fge::GuiElementContext&> fge::GuiElement::_onGuiMouseWheelScrolled

inherited

Callback called when the element is verified and the mouse wheel is scrolled.

---

The documentation for this class was generated from the following file:

• C_guiElement.hpp
